Hardware
BP848
- Complex AHU/Simple AHU
- RTU/HP/FCU-UV Applications
- BTL Listed Controller
- MEXP Expansion Port
- HOA Switches
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 20 I/O Controller with HAO Override Switches and I/O Expansion Port. Onboard 24VDC Power Supply for External Devices. I/O Breakdown = 8 AI/BI, 4 AO & 8 BO. DCV Strategies are embedded. Some Applications require the addition of MEXP Modules to support I/O requirements.
APPLICATION
Complex AHU, Simple AHU, RTU, FCU, Heat Pump & Unit Ventilator (Other Applications available in other BP Models)
ADVANTAGES
- All BACnet Objects Available
- MEXP Expansion I/O Available
- Local HAO Override Switches
- 24 VAC Fuse Protected
- DIN Rail Mounted
- 45° Terminal Blocks
- Quickly and Easily Configured for HVAC Applications
& BTL Listed - Local USB MSTP Network Port
BP848-DIO
- 8 Onboard individual schedule output options
- Conversions and scaling ready – no setup
- HOA Switches
- Pre-loaded Distributive I/O Application
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 20 I/O Controller with HAO Override Switches and I/O Expansion Port. Onboard 24VDC Power Supply for External Devices. I/O Breakdown = 8 AI/BI, 4 AO & 8 BO. Embedded I/O Schedules (8).
APPLICATION
Open I/O Controller for Monitoring or Execution
ADVANTAGES
- All BACnet Objects Available
- Pre-Scaled For Simplicity
- Easily Monitor I/O
- Use As Executable I/O
- 24 VAC Fuse Protected
- Local HAO Override Switches
- Expansion BACnet I/O for Other Platforms
- Local USB MSTP Network Port
BP848-BLR
- Gas or Electric Boiler with up to 4 stages
- Optional second/swing pump for failover.
- Outdoor air enabled with reset for unoccupied time.
- Easy OCN+ or SLC Setup
- HOA Switches
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 20 I/O Controller with HAO Override Switches and I/O Expansion Port. Onboard 24VDC Power Supply for External Devices. I/O Breakdown = 8 AI/BI, 4 AO & 8 BO.
APPLICATION
Boiler, 2 Stage Boiler & Pump Sets (MEXP may be Required)
ADVANTAGES
- Quick Boiler Integration to Systems
- All BACnet Objects Available
- MEXP Expansion I/O Available
- 24 VAC Fuse Protected
- Local HAO Override Switches
- DIN Rail Mounted
- 45° Terminal Blocks
- Quickly and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port
BP848-CLR
- Chiller sequence supports 3 pumps: evaporator, chiller, and swing [optional]
- 2nd chillers (Optional) that will be changed over manually
- MEXP is required for some applications
- ACC (Air Cooled Chiller) & Cooling Tower Applications (Options)
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 20 I/O Controller with HAO Override Switches and I/O Expansion Port. Onboard 24VDC Power Supply for External Devices. I/O Breakdown = 8 AI/BI, 4 AO & 8 BO.
APPLICATION
Chiller, 2 Stage Chiller, CT Integration & Pump Sets (MEXP may be Required) ACC Applications Supported
ADVANTAGES
- Quick Chiller and Tower Integration to Systems
- All BACnet Objects Available
- MEXP Expansion I/O Available
- 24 VAC Fuse Protected
- Local HAO Override Switches
- DIN Rail Mounted
- 45° Terminal Blocks
- Quickly and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port
MEXP I/O
- 8AI, 4AO & 4BO Options
- LCD Display of local values
- Override via Buttons
- Expansion for BP848, OCR and Legacy BPIP
+ LEARN MORE
DESCRIPTION
Expansion I/O for the BP848 Series. Local Display of Values and Override.
APPLICATION
Expansion of BP848 I/O Capabilities
ADVANTAGES
- All BACnet Objects Available
- Real-Time Display
- Local HAO for I/O
- DIN Rail Mounted
- 45° Terminal Blocks
- Quickly and Easily Configured for HVAC Applications.

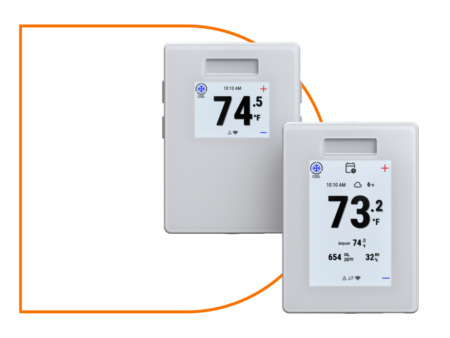

OPENSTAT Wall Controllers
- OS214 (Temp Only) UH/EH/FCU/RTU Smaller Applications (7 I/O)
- OS537H (Temp/RH%) AHU/RTU/FCU/HP/WSHP/MORE (15 I/O)
- OS537MH (Temp/RH%/Motion) (15 I/O)
- OS537MHW (Temp/RH%/Motion/WiFi6) (15 I/O)
- Add “C” to MH/MHW for CO2 Option
- MH/MHW: AHU/RTU/HP/WSHP/FCU-UV/MORE Applications
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP/WiFi6 7 or 15 I/O Muti-Application Wall Controller. Temp/RH%/Motion/CO2 Options depending on model selection
APPLICATION
AHU, RTU, FCU, HP, WSHP, UH, EH & More
ADVANTAGES
- All BACnet Objects Available
- Keypad or Software Config
- TFT Color Display
- Mobile Interface Config: “W” Models
- Quickly and Easily Configured for Multiple HVAC Applications
& BTL Listed - Local USB Service Port
BZ424
- 10 Point VAV Controller
- BTL Listed
- Belimo Actuator
- Flexible VAV applications
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 10 I/O VAV Controller. I/O Breakdown = 4 AI, 2 AO & 4 Binary Triac Outputs. Internally Signaled Belimo Actuator. DCV Strategies are embedded.
APPLICATION
VAV with Multiple Heating/Cooling Options. Dual Duct. VVT Applications (When Paired with 848 Series), Fan Powered VAV (Series/Parallel)
ADVANTAGES
- All BACnet Objects Available
- Use TZ Series or 10KII/10KIII Sensors
- Quickly and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port
BZ424X
- 10 Point VAV Controller
- BTL Listed
- No Actuator (use internal I/O for 3rd Party)
- Flexible VAV applications
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 10 I/O VAV Controller. I/O Breakdown = 4 AI, 2 AO & 4 Binary Triac Outputs. Uses 3rd Party Actuator (Does Not Consume I/O Count). DCV Strategies are embedded.
APPLICATION
VAV with Multiple Heating/Cooling Options. Dual Duct. VVT Applications (When Paired with 848 Series), Fan Powered VAV (Series/Parallel)
ADVANTAGES
- All BACnet Objects Available
- Use Existing Control Actuator
- Use TZ Series or 10KII/10KIII Sensors
- Quickly and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port
BZ122
- 5 Point VAV Controller
- BTL Listed
- Belimo Actuator
- Flexible VAV applications
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 5 I/O VAV Controller. I/O Breakdown = 1 AI, 2 AO & 2 Binary Triac Outputs. Internally Signaled Belimo Actuator. DCV Strategies are embedded.
APPLICATION
VAV with Multiple Heating/Cooling Options. Dual Duct. VVT Applications (When Paired with 848 Series), Fan Powered VAV (Series/Parallel)
ADVANTAGES
- All BACnet Objects Available
- Use TZ Series or 10KII/10KIII Sensors
- Quickly and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port
BW437
- 14 Point Wall Controller
- LCD Display
- Temp/Motion/Humidity/CO2 Options
- Local Service Port
- BTL Listed
+ LEARN MORE
DESCRIPTION
BTL Listed BACnet MSTP 14 I/O Controller with Backlit LCD Display and Multiple Display Options with Silicone Keypad. I/O Breakdown = 4 UI, 3 AO, 6 BO, and 1 Selectable UO. Motion (PIR), CO2, and Humidity Options are available. DCV Strategies are embedded.
APPLICATION
AHU, RTU, Heat Pump, Fan Coil Unit & VAV Applications
ADVANTAGES
- Multiple Sensor Options Available
- Economize in DB or Enthalpy
- All BACnet Objects Available
- Quickly, and Easily Configured for HVAC Applications & BTL Listed
- Local USB MSTP Network Port

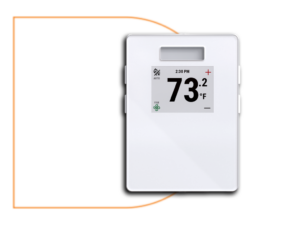

TZ200
- Temp/Humidity/Motion/COS Options
- Backlit LCD Display
- Local Keypad- Setpoint, Occ Override
- MSTP Service Port Available
+ LEARN MORE
DESCRIPTION
Local Intelligent Backlit LCD Display and Multiple Display Options with Silicone Keypad. Motion (PIR), CO2, and Humidity Options are available.
APPLICATION
Works with VAV And 848 Series Strato Controllers
ADVANTAGES
- Multiple Sensor Options Available
- Backlit LCD Display
- Local USB MSTP Network Port (Available)
TZ100
- Temperature Only
- Backlit LCD Display
- Local Keypad- Setpoint, Occ Override
- MSTP Service Port Available
+ LEARN MORE
DESCRIPTION
Local Intelligent Backlit LCD Display and Multiple Display Options with Silicone Keypad. Temperature Only available.
APPLICATION
Works with VAV And 848 Series Strato Controllers
ADVANTAGES
- Backlit LCD Display
- Local USB MSTP Network Port (Available)
OCR: Open Comm Router
- MSTP IP Router
- Browser based configuration
- Onboard Display for Status
- Convertible to OCR+ Controller/Router
+ LEARN MORE
DESCRIPTION
MSTP to IP Data Router optimized for Strato MSTP Controllers. Use with OCN+ or SLC Platforms.
APPLICATION
Install OCR for Data Routing on OCN+ and SLC Platforms
SRV
- IT-friendly approach to BMS installations
- Factory-Installed Platform
- SLC (Windows OS)
- UBUNTU Linux-Based OS
- SEW Legacy (Windows OS)
+ LEARN MORE
DESCRIPTION
Intel®Celeron® CPU J4125 Total Cores. 4; Total Threads. 4; Burst Frequency. 2.70 GHz; Processor Base Frequency. 2.00 GHz ; Cache. 4 MB Fanless • Hard drive: 1 Tb SSD Non-partitioned • RAM: 32 Gb DDR4 RAM • 2x USB-3 ports • 2x USB-2 ports • 2x Intel Gigabit NIC Ethernet ports • WIFI + Bluetooth • HDMI + VGA remote display port • Audio In/Out port • 2x RS232 COM • Intel HD Graphics
APPLICATION
Hardened Intel Server for on-site server requirements. Browser-based viewing and configuration of OCN+ and SLC Platforms. SEW Workstations applications for Legacy Platform
N4 JAR File
- Embed to the Niagara N4 Workbench
- Quick Config of Strato Controllers
- License per JACE or Supervisor Instance
- Uses Virtuals – No Point Consumption
+ LEARN MORE
DESCRIPTION
Workbench Embedded Niagra Toolset for configuration of Strato Devices via simple configuration menus. Rapid Deployment.
APPLICATION
JAR is designed for N4 quick configuration of Strato Device
Additional Equipment
DIS12
- 12” Capacitive Touch Monitor for OCN+, SLC and SEW Platform Servers
SRP
- 8I/8O Isolation Relay Pack I.E. 4A-12A @24VAC-277VAC
USB-MSTP-L
- 15’ USB to Micro USB Comm Cable
USB-Wire
- MS/TP Wire to USB Converter
